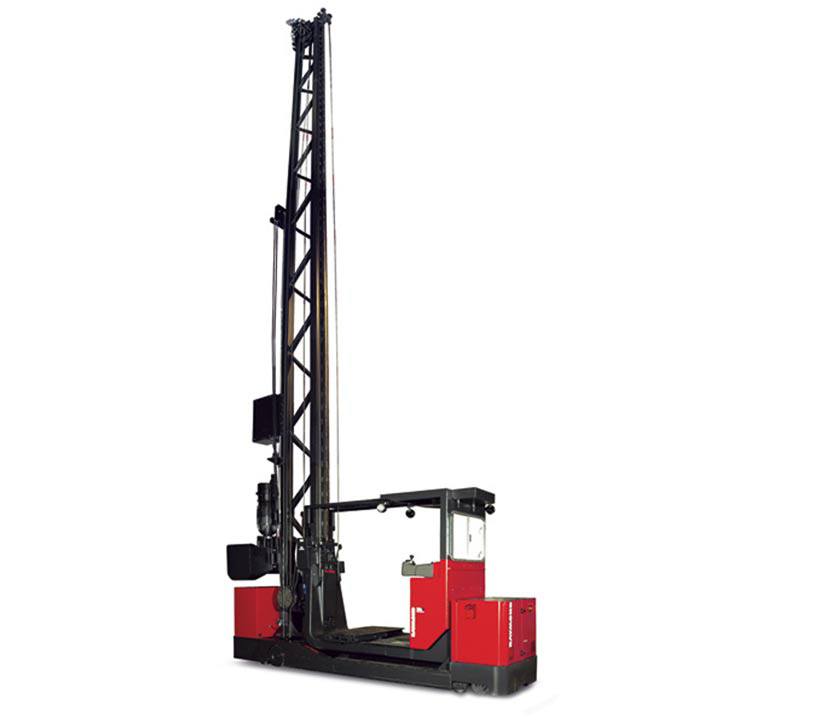

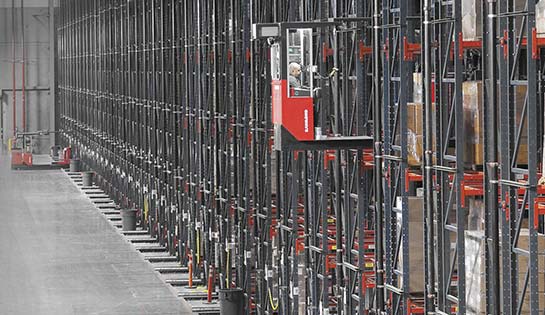

Transtacker Swing-Reach Heavy-Duty Turret Truck
-
-
Built-in DC Charger
Operates on AC power in the aisle, which recharges the DC motor for power required outside the aisle.Built-in DC Charger -
Dual Purpose Design
Combines high-density unit load handling with operator-up order picking versatility.Dual Purpose Design -
Regenerative Braking
Reduces motor heat and extends motor brush life, requiring less maintenance and lower overall costs.Regenerative Braking -

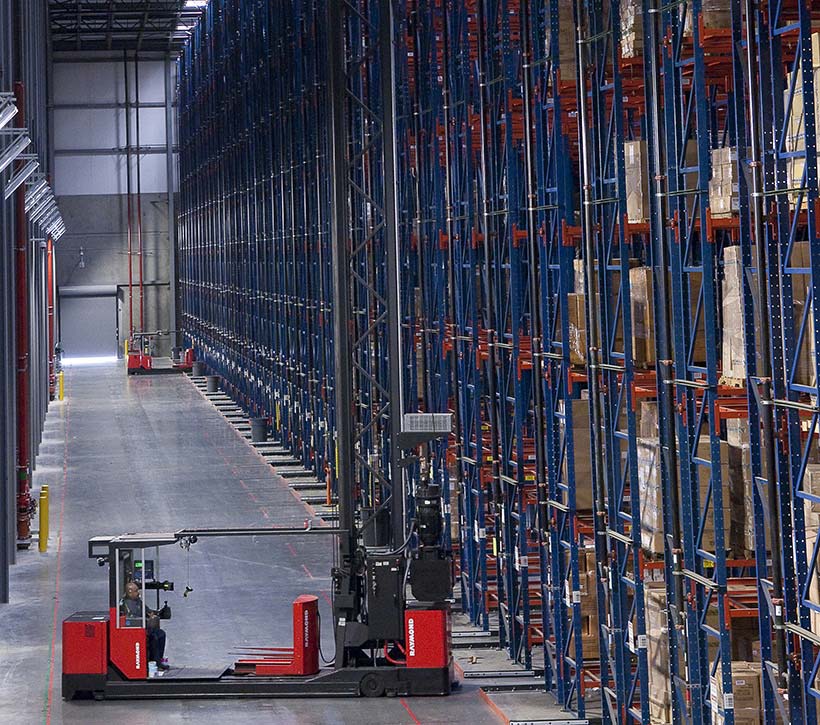

Smooth Speed Control
Transistorized speed control provides smooth, variable control both inside and outside of the aisle.Smooth Speed Control -

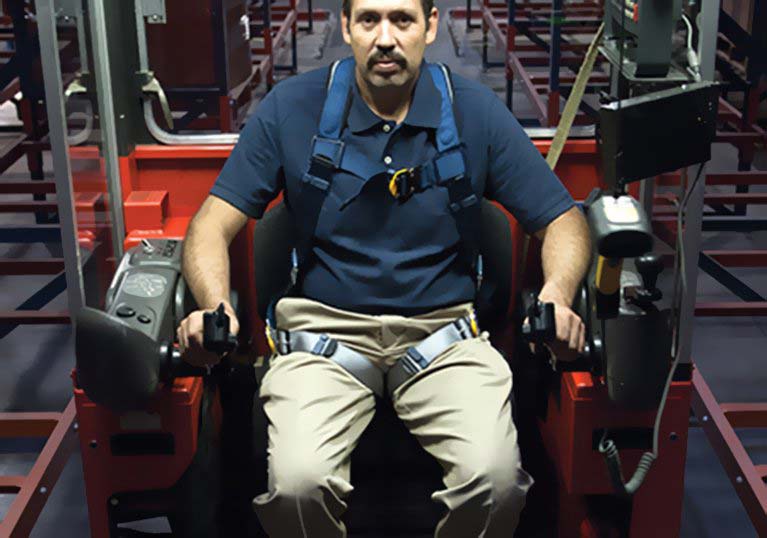

Comfortable Compartment
Designed with comfort features to enhance operator performance and productivity.Comfortable Compartment

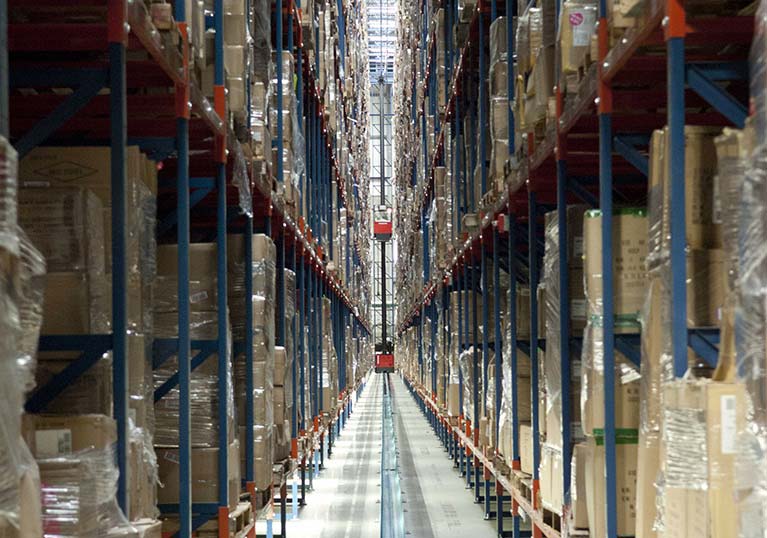

Ultimate Storage Density
Maximize valuable space with narrower aisles and higher heights with the Raymond Transtacker. This heavy-duty, high density swing-reach turret truck combines case picking and unit load handling in aisles as narrow as 54 inches at heights up to 59 feet, for the ultimate very narrow aisle warehouse storage solution.- Battery: 36 volt
- Capacity: 4,000 lbs
- Elevated Height: 700" maximum
- Power: AC/DC Power allows 24/7/365 operation
- Aisle Width: 54" minimum
Raymond Transtacker - Product Information
-
Interested In Automation?
To address today’s labor constraints and costs, we offer an automated option to use the truck in automated mode or with an order in manual mode. This combines the space and labor savings benefit of AS/RS system with the flexibility to change aisles when needed using the manual mode. Contact us today to learn how the Automated Transtacker uses no special racking – just your existing infrastructure.
Productivity
-

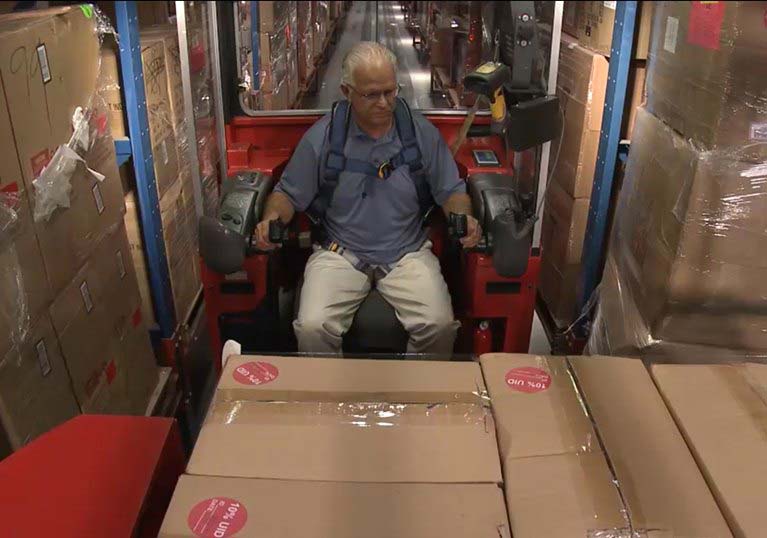

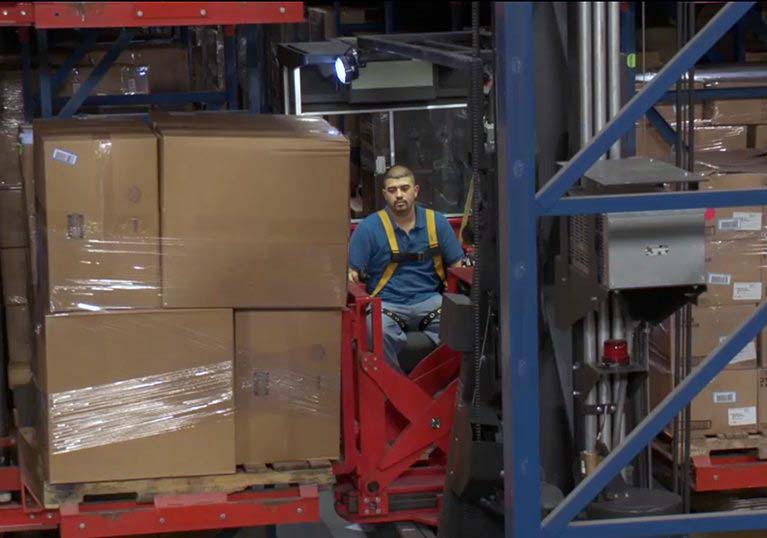

Fine Positioning Controls
Fine positioning controls for the lift, travel and load handling functions provides better load control for operator efficiency, while the pallet centering feature aligns pallet in the proper position to maintain constant travel clearance. -

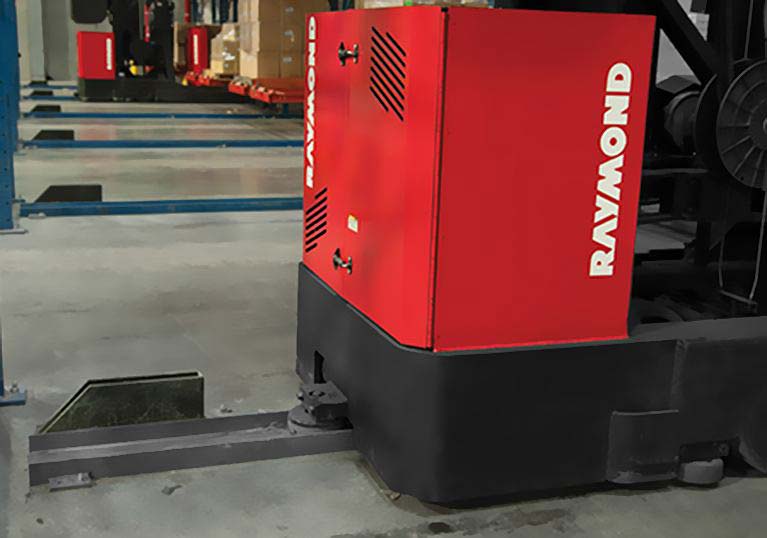

Unique Wheel Arrangement
The Transtacker's center wheels work in the aisle for mast support while outside wheels provide support when changing aisles to provide optimum wheel loading while working in the aisle.
Ergonomics
-

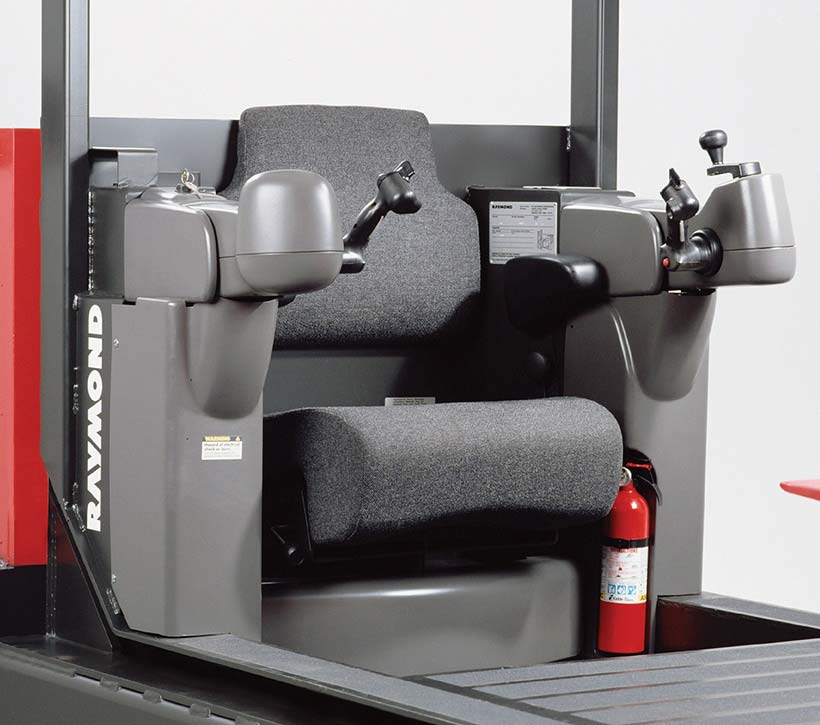

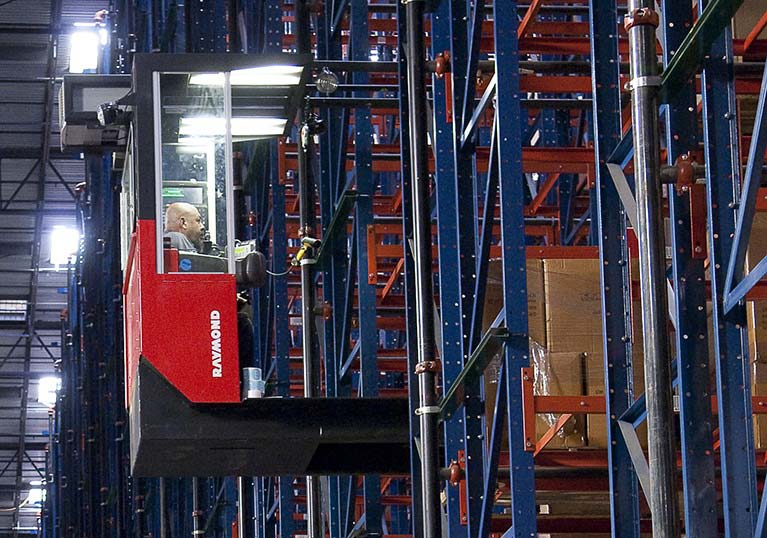

Operator's Compartment
Ergonomically designed with adjustable armrests and controls for convenient operation from seated and standing positions.
-
Intuitive Controls
The handles and operator display allow for easy and efficient control of critical truck functions.
Dynamic Hoist Braking
Slows hoist motion to a smooth stop prior to engaging the mechanical brake, minimizing hoist brake wear and maximizing operator comfort.
Eco-Performance
-

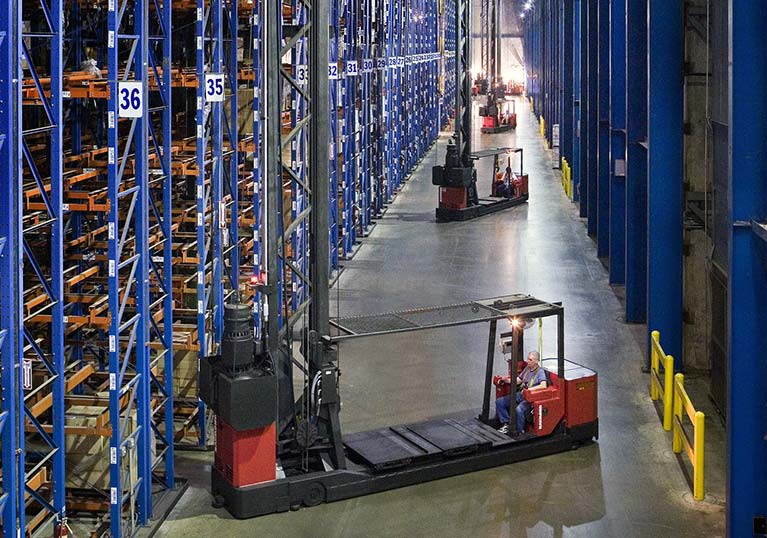

24/7/365 Operation
Dual AC/DC power supply with AC power in the aisle guided by floor and ceiling mounted guide tracks while automatically recharging the DC battery for operation outside the storage aisle, allowing for continuous operation. -
Regenerative Braking
Provides electromotive braking reducing motor heat and extending motor brush life.
Versatility
-

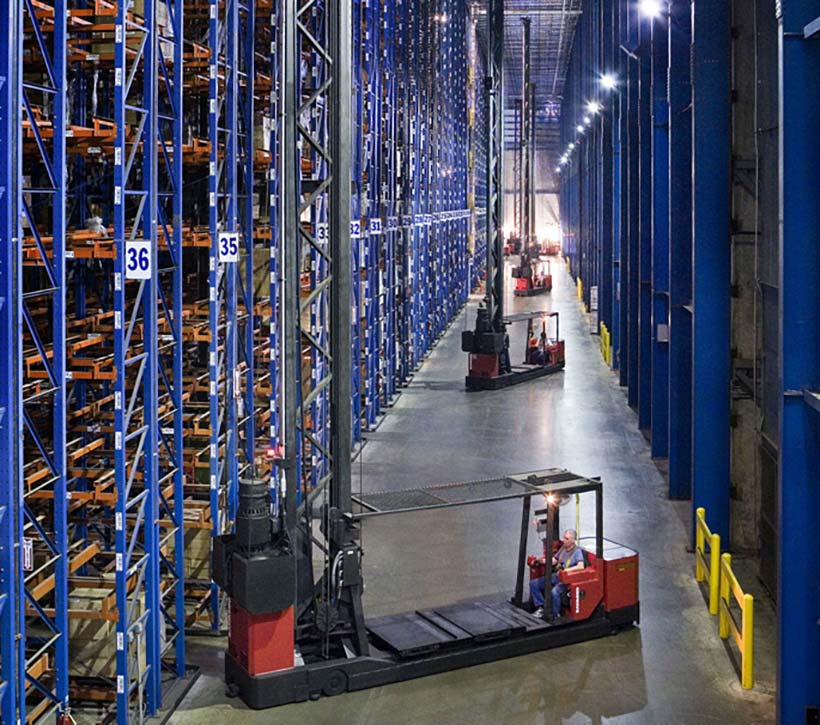

AC/DC Power Supply
Provides fast and easy aisle-changing capabilities with no mechanical aisle-changing devices. -
Ultimate Storage Density
The heavy duty Transtacker combines case picking with unit load handling in a single truck, and with its capacity of up to 4,000 pounds, elevated height of 59 feet, and the ability to operate in aisles as narrow as 54 inches, it is ideal for high density applications with a need for maximum selectivity. -
Various Operating Positions
From the platform allow effortless control whether standing or sitting facing forks first.
Maintainability
Options
-
Order Pick Platform
At the operator’s compartment helps to make storing pallets, picking cases or transporting loads effortless by allowing the operator to stand facing tractor first or forks first; or sit facing forks first. -
Various Compartment Configurations
Available with various operator compartment configurations such as the 3-sided cab (shown), or the fully enclosed compartment option which is equipped with climate control and can reduce or eliminate the need for lighting, heating and air-conditioning costs in the storage area. -

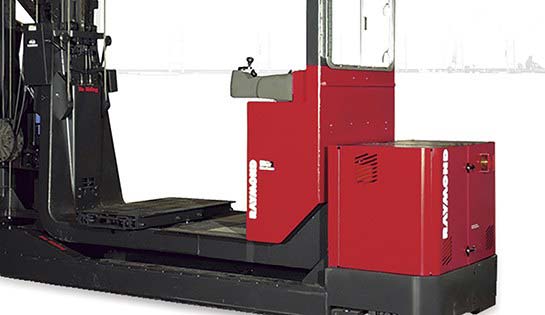

Mini Shuttles
When handling multiple loads in applications such as stacker type racks, a set of mini shuttles engages loads on pallets with no bottom crossboards, or from underneath the pallet/skid or load itself. With mini shuttles, the load does not need to be rotated, allowing for faster load handling, and, in some cases, a narrower aisle. -
Cold Storage Conditioning
Where there are requirements for a truck to operate outside the normal warehouse temperature range of 51°F to 110°F, such as in freezers, unheated warehouses, and refrigerated warehouses, the Transtacker Swing-Reach truck is available with cold storage conditioning to help maintain good truck performance.
Applications
-
Cold Storage
Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions; testing and proving our systems in extreme cycles of freezing and thawing. Raymond Transtacker turret trucks can be equipped with cold storage conditioning and heated cab options to enhance operator comfort in cold storage warehouses.
-
Order Picking
Boost throughput and pick rates with reliable, high performance Raymond Transtacker trucks. Lifting greater capacities to higher heights means greater order picking productivity for your operators. And, we can customize our vast selection of swing-reach trucks, including lift heights and performance packages to meet very narrow aisle needs and order picking requirements.
-
Very Narrow Aisle
With over 200 combinations of heights, features and capacities, Raymond's family of very narrow aisle forklifts and swing-reach trucks offer superior versatility and effective solutions, each improving the utilization of your warehouse space.
