8210 Motorized Pallet Jack Walkie Pallet Jack

  • Motorized Pallet Jack, Raymond 8210 Walkie Pallet Jack
    Raymond lift trucks provide maneuverability

    Click2Creep

    Provides superior maneuverability at slower controlled speeds.
    Click2Creep
  • Raymond 8210 Walkie Pallet Jack, Power Pallet Jack with HSLA bumper
    Raymond lift trucks are designed for ease of maintenance

    Debris Diversion

    Rubber skirting directs light debris away from the drive tire.
    Debris Diversion
  • Raymond Power Pallet Jack, Motorized Pallet Jack electric brake release
    Raymond lift trucks are designed for ease of maintenance

    Electric Brake Release

    Allows for release of the brake during low battery conditions without removing the covers.
    Electric Brake Release
  • Motorized Pallet Jack, Raymond 8210 Power Pallet Jack intuitive control handle
    Raymond ergonomic lift trucks

    Ergonomic Control Handle

    Dual throttle controls are easy to reach and operate.
    Ergonomic Control Handle
  • Raymond durable lift trucks

    Lift and Go

    Lets you reduce travel speed to train operators to travel with forks elevated to prevent unnecessary wear.
    Lift and Go
  • Raymond 8210 Power Pallet Jack stabilizer blocks
    Raymond durable lift trucks

    Polymer Stabilizer Blocks

    Unlike steel blocks, these absorb impact to protect the truck and retail floors.
    Polymer Stabilizer Blocks

Better Engineering. Proven Technology.

The Raymond 8210 powered pallet jack with AC power provides unparalleled maneuverability to navigate in tight spaces – congested store aisles, busy docks and pinwheeling in the back of trailers. Operators will appreciate the smooth, controlled operation and your business will benefit from the increased strength and energy efficiency the 8210 motorized pallet jack delivers without sacrificing durability.

Inquire
  • Battery: 24 volt
  • Capacity: 4,500 lbs.
  • Frame Width: 28 inch overall width
  • Power System: AC Traction Control


Features  |  Options  |  Applications  |  Information  |  Videos




Electric Pallet Jacks Built To Perform:
Durability, Ergonomics, Maintainability, Maneuverability, Productivity

Operators need precise control to carefully maneuver the load to minimize risk of injury or damage to the truck, product, or trailer. Smooth, precise speed control and a tighter turning radius are key to increasing maneuverability. Whether you're pinwheeling in the back of trailers or navigating lift gates with inches to spare, you'll turn tighter and with more confidence with the 8210.

  • Raymond 8210 walkie pallet jack maneuverability on trailer

    AC Traction Control

    Provides seamless speed transitions, allowing the operator the control needed to smoothly move the truck one inch at a time.
  • Raymond 8210 Walkie Pallet Jack click 2 creep for pinwheeling

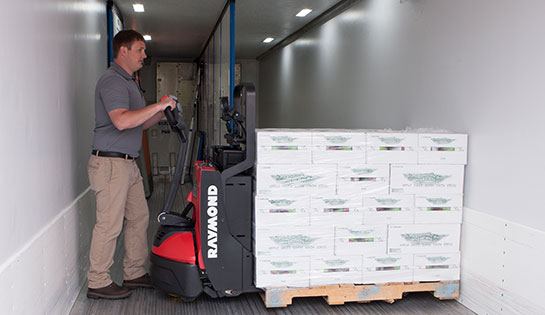

    Click2Creep

    Raymond's exclusive Click2Creep feature provides unmatched maneuverability. Click2Creep automatically reduces travel speed and allows the truck to be operated with the handle tucked tightly to the tractor for pinwheeling in trailers, and providing superior maneuverability at a slower, controlled speed.
  • Raymond 8210 walkie pallet truck with static torque control

    Static Torque Control

    With static torque control, the 8210 walkie pallet truck separates speed from torque, giving operators the power they need to maneuver the 8210 walkie pallet truck up and over lift gates and curbs with smooth, controlled operation at all speeds.
  • Raymond 8210 walkie pallet jack with antiroll braking

    AntiRoll Braking

    Prevents the unit from rolling when parked on uneven surfaces — ensuring the truck’s movement is controlled until the operator requests travel.
  • Raymond 8210 Walkie Pallet Truck

    Auto Power Off

    Our exclusive Auto Power Off feature monitors truck usage and powers the unit down when idle, preserving battery capacity to keep you running for a full day’s work.
  • pallet jack brake release

    Electric Brake Release

    This feature releases the electric brake during low battery conditions without having to remove the truck covers. Our exclusive design retains braking ability when the handle is in the brake position, increasing operator control.
  • Raymond 8210 Walkie Pallet Jack with lift and go feature

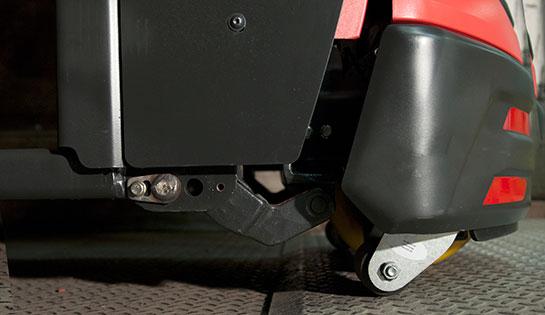

    Lift and Go

    A Raymond exclusive, this technology lets you reduce travel speed to train operators to travel with forks elevated to prevent unnecessary wear over dock plates, lift gates and curbs.
  • Raymond 8210 Walkie Pallet Jack with Ductile iron frame

    Ductile Iron

    Ductile iron in the frame supports the drive motor with almost twice the yield strength of steel. Ductile iron bell cranks and wheel forks provide a more durable undercarriage construction.
  • Raymond 8210 Walkie Pallet Jack with HSLA bumper

    High Strength Low Alloy Bumper

    HSLA is 20 to 30% lighter than low‐carbon steel while providing the same strength. In impact testing, the Raymond bumper, which combines HSLA material with its extruded, ribbed design, proved 3 times stronger than competitive bumpers but weighs less.
  • Raymond 8210 Walkie Pallet Trucks

    Fully Programmable

    Programmable performance parameters let managers customize truck performance to fit the work environment and operator needs.
  • Raymond 8210 Walkie Pallet Truck

    Ergonomic Control Handle

    Raymond's ergonomically contoured handle features easy‐to‐reach controls that are intuitive to learn and operate.
  • Raymond 8210 Walkie Pallet Jack

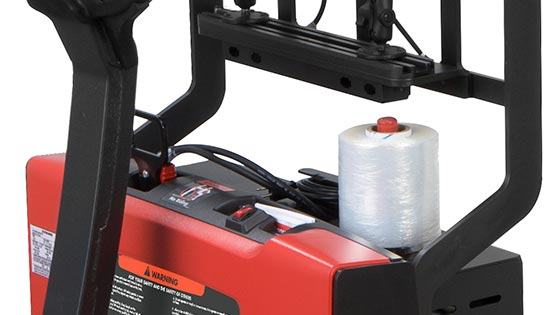

    Tote and EBar

    The optional storage tray and accessory bar put the operators tools at their fingertips. The powered accessory bar interfaces with RAM-mounted accessories for additional conveniences such as a work light and fan.
  • Raymond 8210 walkie pallet truck with removable polymer cover

    Poly Carbonate Covers

    Light weight yet durable, our snap fit poly covers provide the durability you need, yet secure without screws for quick and easy service access.
  • Raymond 8210 Walkie Pallet Truck

    Removeable Bumper

    The high-strength low alloy bumper is lightweight yet resilient and removes easily for convenient service access.
  • Raymond 8210 Electric Walkie Pallet Truck

    Stainless Pins

    Operating in wet environments corrodes steel pins. Stainless steel undercarriage pins are standard to prevent corrosion and simplify service
  • Lithium-ion Batteries

    Our line of lithium-ion batteries, compatible with our family of forklifts, showcases our dedication to advancement. These batteries are designed to seamlessly integrate into your lift trucks providing advanced data insights and wireless communication for remote diagnostics and upgrades.

    Use our Lithium-ion ROI calculator to calculate the cost savings you could be receiving by switching to Lithium-ion batteries within your current fleet.

    Start Saving

Walkie Pallet Truck Options

  • lithium ion battery, energy solutions

    Lithium-ion Batteries

    These batteries are designed to seamlessly integrate into your lift trucks providing numerous benefits including longer runtime, quicker recharge time, increased performance, and decreased cost of ownership.
  • Raymond 8210 power pallet truck cold storage conditioning

    Cold Storage Conditioning

    All temperature hydraulics, transmission oils and temperature sensing components protect control systems — assuring peak performance and productivity, while stainless steel undercarriage pins protect from corrosion and rust.
  • Raymond 8310 Walkie Pallet Truck Pin Code Pad

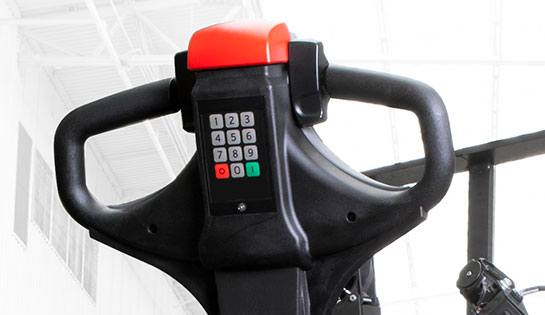

    PIN Code Pad

    The optional personal identification number (PIN) code pad provides password protection for additional security. Store up to 10 different passwords to prevent unauthorized operation.
  • Raymond iWAREHOUSE Telematics display

    Telematics

    This comprehensive telematics suite of solutions tracks and reports on vehicle and operator utilization and data to help drive productivity across your operations.
  • 8210 walkie pallet truck, weigh scale

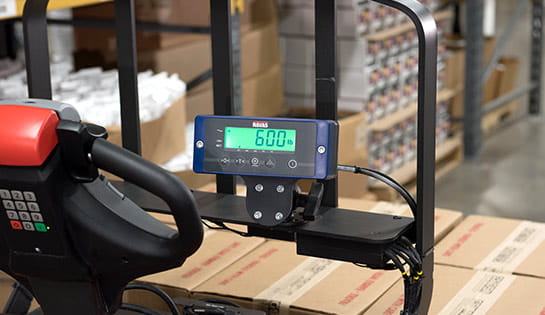

    Factory-Installed Weigh Scales

    Whether you’re shipping, receiving, order picking or piece counting, Raymond’s 8210 Walkie Pallet Truck with factory-installed, fully integrated mobile weigh scales can save you valuable time and money on every load, every day.
  • On Board Charger, 8210 Attachment

    On Board Charger

    Reducing total cost of ownership by separating the battery/charger combination, the Delta-Q integrated charger enables a convenient and operator friendly charging capability for increased efficiency.
  • Raymond 8210 motorized pallet jack accessory bar

    Accessory Bar

    Interfaces with RAM-mounted accessories to put additional operator tools at their fingertips; available with optional work light and fan.
  • Raymond 8210 walkie pallet truck storage tray

    Large Storage Tote

    The optional tote helps to keep work tools organized and at your operators fingertips for added convenience and productivity throughout the shift.
  • Raymond 8210, Extreme Environment, Cold Storage

    Extreme Environment Protection

    Hot-dip galvanization and electronics coatings protect components and extend the life of the truck in wet, corrosive environments.

Applications

  • Cold Storage

    Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test facility to replicate the harshest conditions; testing and proving our systems in extreme cycles of freezing and thawing.

  • Dock and Delivery

    The Raymond 8210 walkie pallet truck is ideal for use on-board delivery trucks. This compact AC-powered walkie is exceptionally maneuverable and allows pin wheeling in trailers for maximum cube.

  • Processing Applications

    Raymond offers Extreme Environment Corrosion Protection with hot-dip galvanization on the 8210 electric walkie pallet truck to protect trucks used in wet, caustic and briny applications from moisture and to flush contaminants.

  • UL EE Applications

    This lift truck complies with Underwriters Laboratories (UL) 583. Raymond® Type E and EE trucks are designed and manufactured to operate in classified locations as defined in NFPA 505. Type E and EE products are tested and certified by Underwriters Laboratories (UL).

Motorized Pallet Jack Videos

  • 8210: Power Proven to Perform

    The Raymond 8210 motorized pallet jack delivers power proven to perform. With proven technology and smarter, stronger and more efficient design, the 8210 Walkie Pallet Truck delivers power and battery-saving features to tackle the job at hand.
  • 8000 Series Pallet Jacks

    From the heavy-duty undercarriage to the rugged polymer cover that won't rust, fade or dent, Raymond pallet jacks are built with the right material for the job. With fewer and longer lasting components that require less maintenance, and engineered to handle high volume dock work, horizontal transportation and low-level order picking with ease.
