9300 Sideloader Long Load Handling
-
-

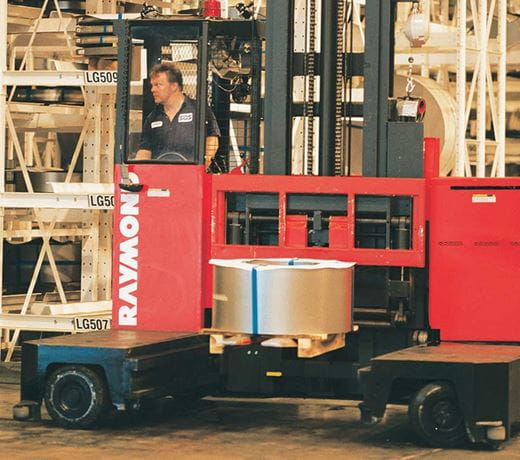

Crab Steering
Two wheels that steer independently allows sideways travel capability down narrow storage aisles.Crab Steering -

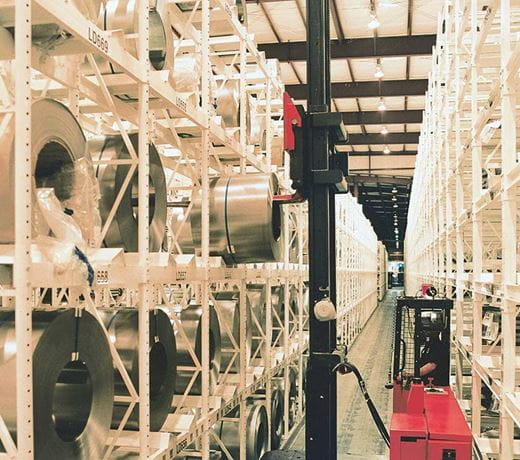

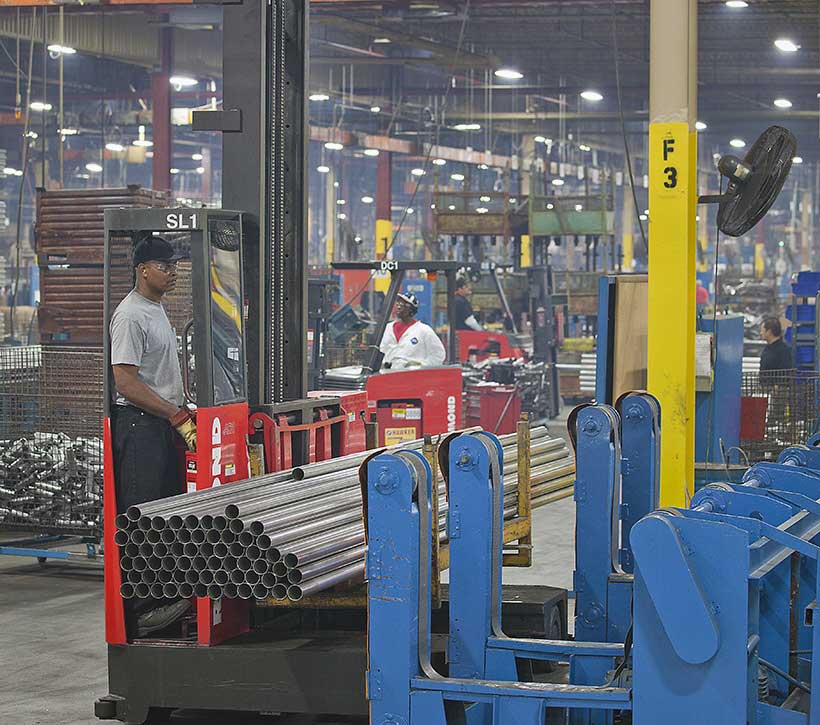

Fork Tilt
Precision fork tilt provides greater load control to reduce product and rack damage.Fork Tilt -
Mast and Carriage Tilt
Provide maximum load control, in two or three stage mast configurations.Mast and Carriage Tilt -

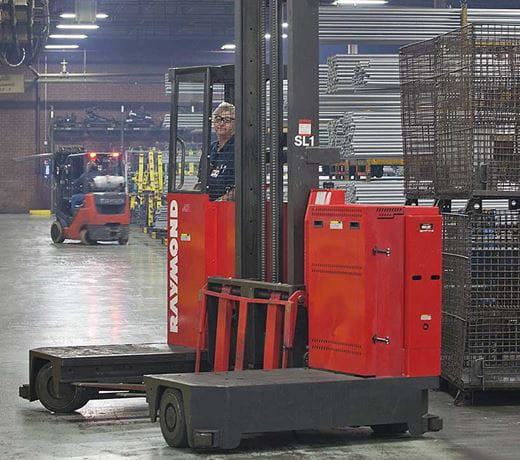

PowerSteer
Significantly reduces operator effort needed to steer the truck, for greater shift long comfort.PowerSteer -

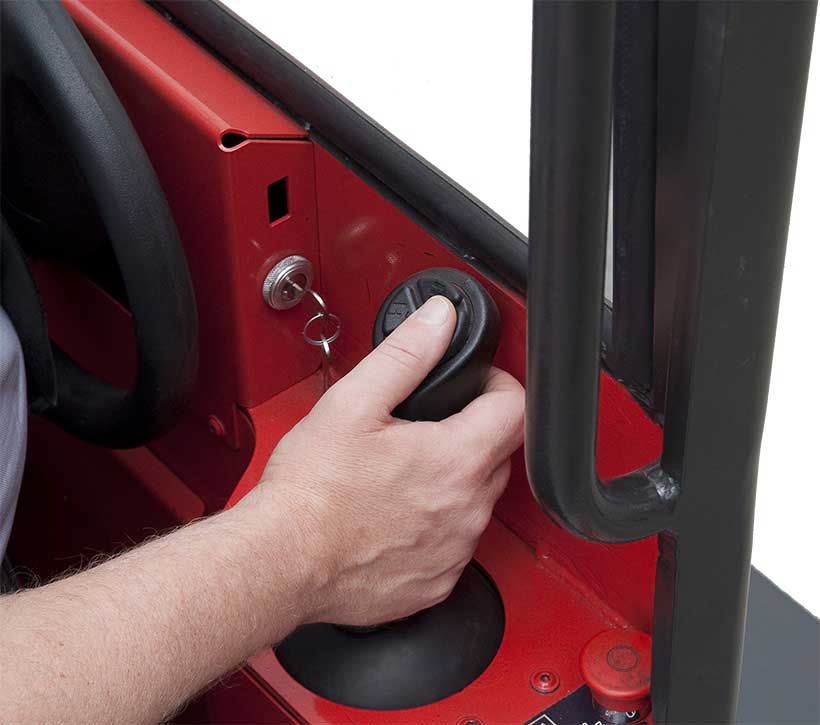

Variable Speed Lift/Lower
A single knob controls both lift and lower functions, allowing complete and variable speed control.Variable Speed Lift/Lower

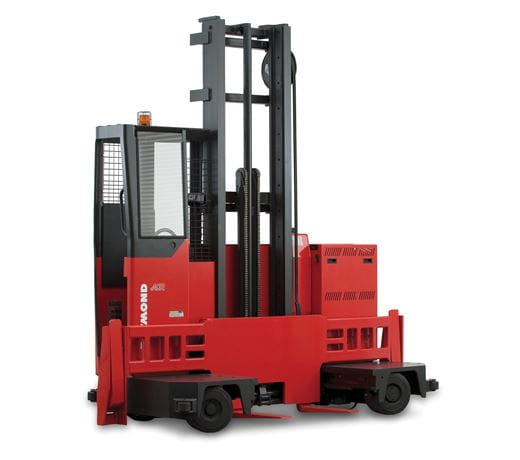

Reach Greater Heights In Your Narrowest Aisles
With the rugged, dependable Raymond 9300 Sideloader, you can easily move long and bulky materials up to 6,000 pounds in narrow storage aisles and tightly confined areas. Raymond Sideloader long load forklift trucks provide superior maneuverability that allows operators to more easily move long, cumbersome loads such as bar stock, tubing, laminates and plywood sheets and stacking them up to 30 feet high.
- Battery: 48 volt
- Capacity: 6,000 lbs
- Elevated Height: 360" maximum
Durability
-

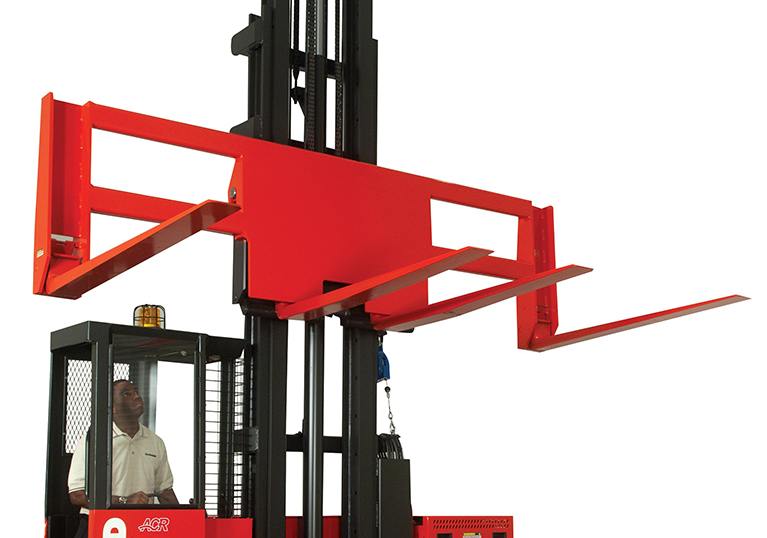

Cushioned Mast Stops
Absorb shock to reduce product damage due to load jarring. -

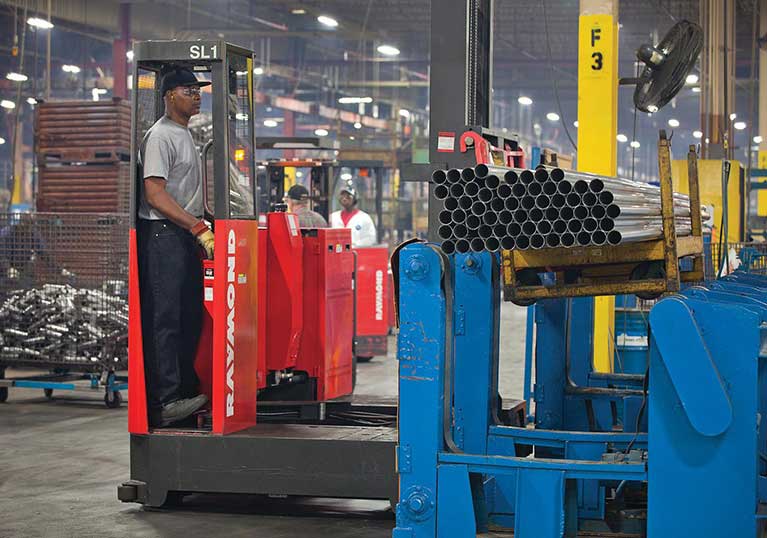

Heavy Duty Capacity
The Raymond 9300 Sideloader offers heavy duty 6,000 lb capacity to handle your long and bulky loads with ease in narrow aisle storage areas. From lumber to handling raw materials in manufacturing applications, our Sideloaders are engineered to handle your heaviest loads, day after day, year after year.
Ergonomics
-

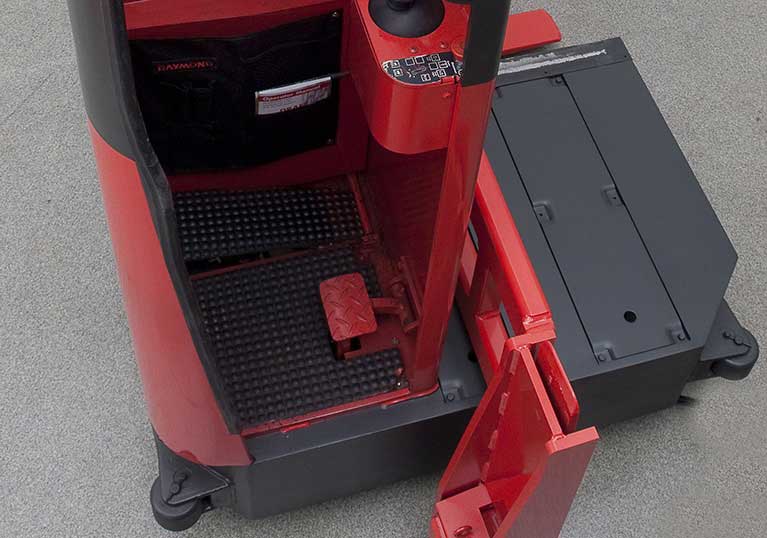

Cushioned Floor
A cushioned floor mat provides shift-long comfort.
-
Ergonomic Compartment
The roomy operator compartment provides multiple lean points, easy-to-reach controls that are ergonomically designed, and a clear view to the forks and load for enhanced operator comfort and productivity throughout the shift.
Ergonomic Controls
The single-axis control handle allows for comfortable, easy maneuvering of long loads in narrow aisles and tight work areas. The variable speed lift and lower provides precise load control and reduces load jarring.
Eco-Performance
-

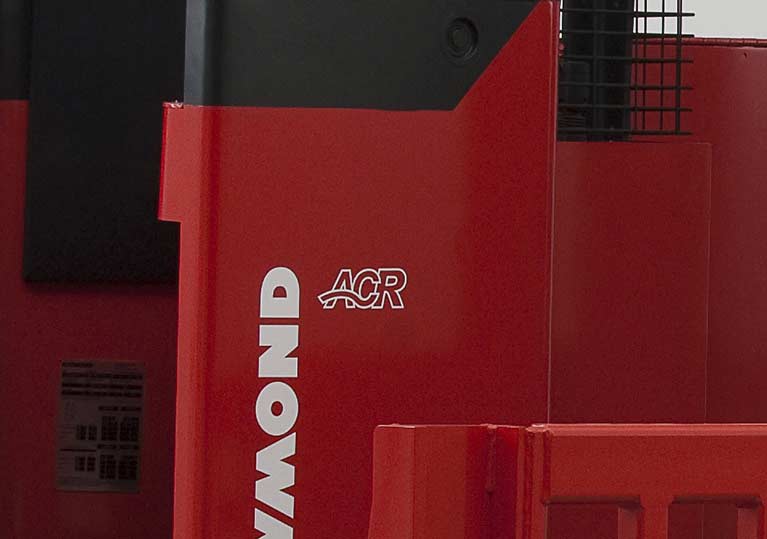

ACR System
Raymond's exclusive ACR System requires fewer battery changes and more uptime and lower energy costs. ACR delivers smooth handling while the 48 volt power unit maintains high performance throughout the battery cycle. -

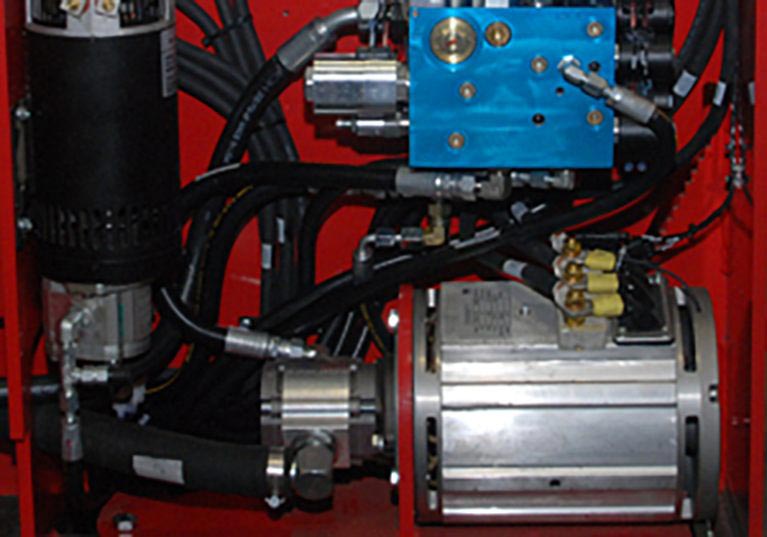

Dual Drive Motors
Dual, independent drive motors provide power and positive traction to increase productivity. -

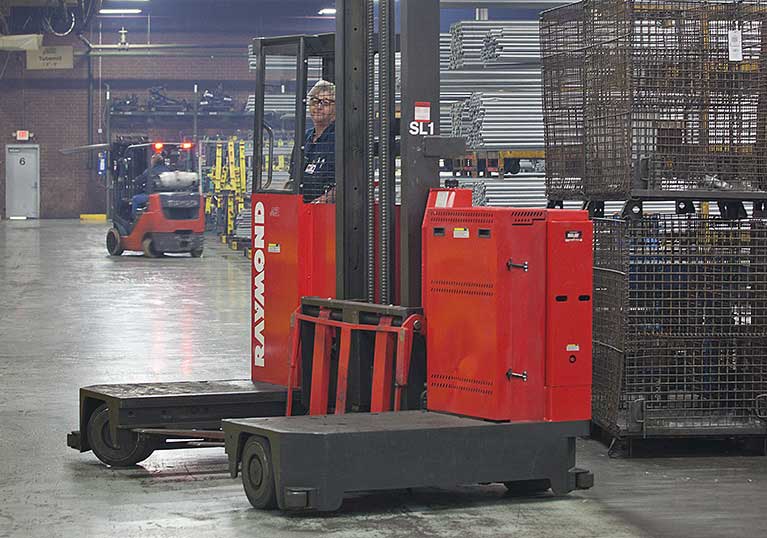

Faster Travel Speeds
ACR delivers faster travel speeds and quicker acceleration for increased productivity - all while using less energy than comparable AC systems.
Versatility
-

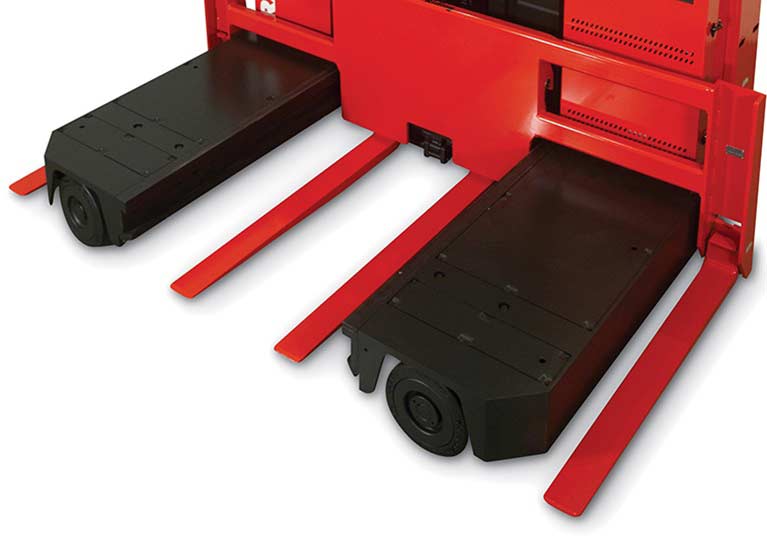

Auxiliary Fork Carriage
Long, flexible loads need additional support - such as laminate or plywood - can be easily handled with the Auxiliary Fork Carriage option. This feature provides two extra forks to handle longer loads, which simply fold up and out of the way when not needed. -

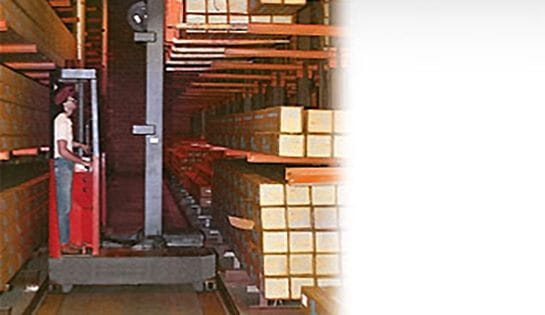

Double Rail Guide Rollers
Rail guidance allows optimal productivity in narrow aisle storage aisles by freeing up the operator from steering tasks, allowing them to fully focus on selecting the next load. -
Hydraulic Adjustable Forks
This option allows the operator to adjust the width of the forks from 15" to 48" to move and store varying load widths quickly and easily.
Maintainability
Options
-

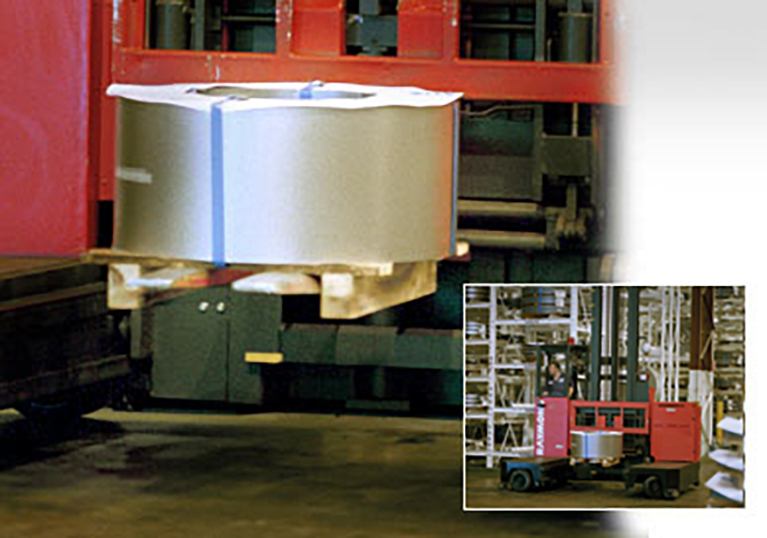

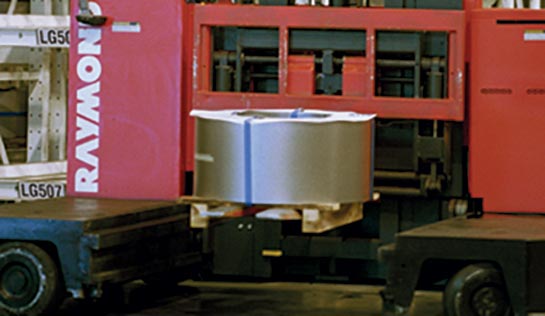

Adjustable Forks
Optional Hydraulic Adjustable Forks allow the operator to easily adjust the overall width of the forks from 15 inches to 46 inches in order to move and store loads of various widths quickly and easily. -

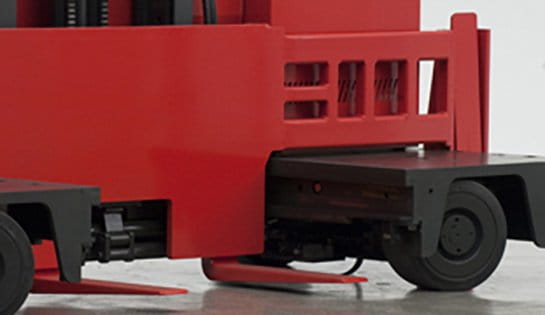

Auxiliary Fork Carriage
Long, flexible loads needing additional support can be easily handled with the Auxiliary Fork Carriage option. This configuration provides two extra forks to handle the load; when not needed, the extra forks simply fold up and out of the way. -

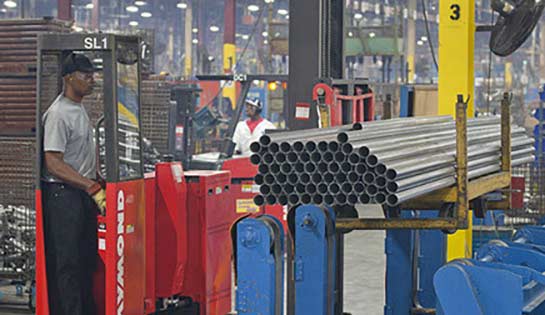

Bed Length
Select from bed lengths in widths ranging from 51 inches to 60 inches to support a longer load as needed in your application. -

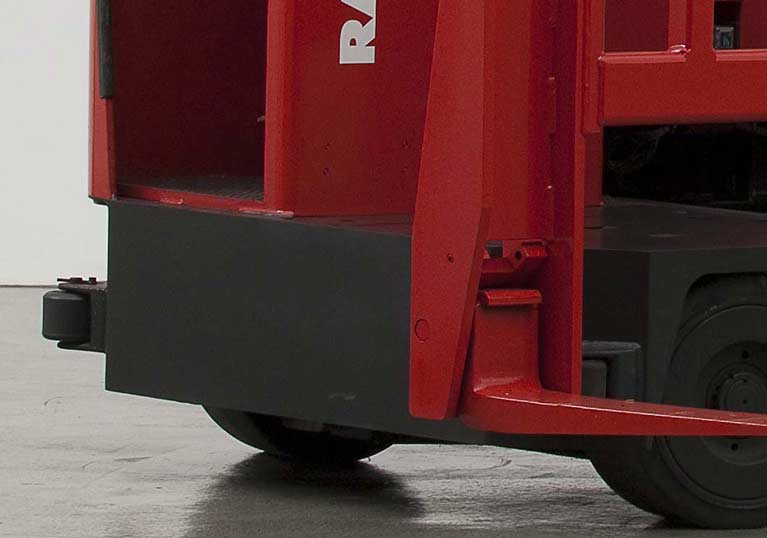

Double Rail Guide Rollers
This rail guidance configuration relieves the operator of steering duties in narrow aisles, improving productivity by allowing operators to fully focus on selecting the next load. -

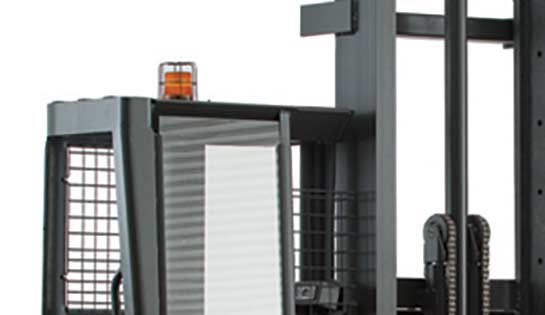

Work Lights
Optional work lights help to provide proper lighting for the work area and task at hand. Travel lights enhance operator visibility by illuminating the travel path. Warning, flashing or rotating lights are available in various colors for use in areas with high pedestrian activity.
Applications
-
Long Load Handling
Whether you are handling furniture, bar stock, tubing, lumber or other long and bulky loads, Raymond Sideloader long load forklifts can increase your storage space by up to 40%. With a wide range of trucks built for specific long load handling needs, it's easy to maximize your space utilization and productivity with Raymond.
-
Palletless Handling
Whether you are moving furniture, carpeting, steel, cartons or other palletless loads, Raymond has the answer. Raymond sideloader long load forklift trucks are an ideal option to maximize space utilization, decrease damage to inventory and increase productivity with palletless handling.
-
Specialty Racks
Sideloader lift trucks can interface with Cantilever warehouse racks. It's another Raymond solution that will help maximize your storage capacity and productivity.
-
Narrow Aisle Storage
Raymond introduced the first electric narrow aisle straddle truck in 1951, revolutionizing the material handling industry. With over 200 combinations of heights, features and capacities, Raymond sideloader trucks provide narrow aisle storage and offer superior versatility and long load handling solutions, each improving the utilization of your warehouse space.
-
UL EE Construction
This lift truck complies with Underwriters Laboratories (UL) 583. Raymond® Type E and EE trucks are designed and manufactured to operate in classified locations as defined in NFPA 505. Type E and EE products are tested and certified by Underwriters Laboratories (UL).
